    Fan Lights

    current location： Home > Application>LED Lighting>Fan light
    Solution description
    Fan lamps, used as an auxiliary appliance to air conditioners, enhance the efficiency of air conditioners. Fan lamps are aesthetically pleasing, equipped with fan blades and lampshades of various colors and styles, and have functions such as lighting, cooling, and decoration.

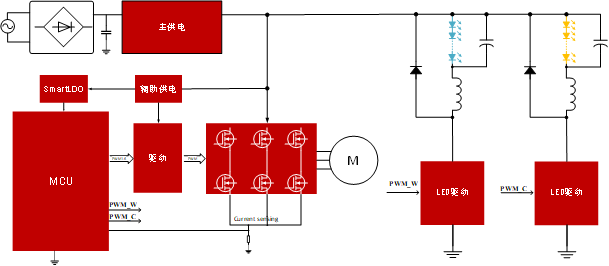

    Application Diagram
    Fan Lights
    Solution Features

      Dual use of one light: Lighting and fan function

      Sensorless FOC, high efficiency, smooth operation, excellent mute effect

      Complete protection mechanism: over voltage, under voltage, over current, blocking, phase loss, short circuit and other protection

    Product Recommendation
    PNProduct type Description
    BP3519Main power supplyLow PF isolation, external MOS
    BP6526BAuxiliary power supplySmartLDO maximum output current 150mA, high efficiency, low standby power consumption
    LKS32MC037EM6S8B
    LKS32MC035EM6S8B    		MCU32-bit MCU, RAM 4K, FLASH 32K, 48MHz main frequency, integrated op amp, comparator, built-in 40V P+N Predriver
    LKS0405CGMOSSOP-8,BVds 40V
    BP2523BAuxiliary power supply 160mA continuous current
    LKS32MC037M6S8BMCU32-bit MCU, RAM 4K, FLASH 32K, 48MHz main frequency, integrated op amp, comparator
    BP6911GatedriverFloating channel operation up to 600V
    B50T040F
    B50T070F    		High Voltage BVds 500V, RDSon_typ 2.9(Ω)，TO252
    BVds 500V, RDSon_typ 1.1(Ω)，TO252
    LKS1D5005D
    LKS1D5007DT

    Power module

    		BVds 500V, RDSon_typ 21.4(Ω)，ESOP13
    BVds 500V, RDSon_max 1.1(Ω)，ESOP13
