    On-board Water Pump

    current location： Home > Application>Automotive Electronics>Automotive Water Pump
    Solution description
    Automotive water pump is the core component of automotive thermal management system, in order to ensure the normal and stable work of the pump in the whole environmental range, Lingou Chuangcore launched LKS32AT08 series MCU, with excellent computing performance and high reliability, one-stop solution to ensure the stable operation of automotive thermal management system, every trip to enjoy excellent performance and peace of mind protection.

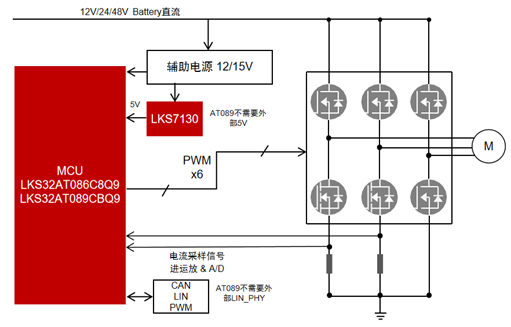

    Application Diagram
    On-board Water Pump
    Solution Features

      Stable high-speed observer and weak magnetic algorithm

      Fast braking function, power failure and voltage loss protection

      Low power current within 100uA

      Constant power in water, constant speed out of water

      PWM/LIN/CAN communication to adjust the power of the speed in real time

      Over current, over voltage, under voltage, over temperature, lack of phase, blocked rotation, off water idling protection function

    Product Recommendation
    PNProduct Type
    LKS32AT086N8Q9MCU
    LKS32AT089XLN8Q9
    LKS7130LDO
