    Sketch
    The BP5758D is a five-channel high-precisiondimmable constant-current linear LED driver. It istargeted for tunable warm/cold/color smart lightingapplication. The BP5758D integrates five-channel(OUT/2/3/4/5)500V/90mA MOSFET. It achieves output currentadjustment with 1024 gray-scale level and eliminatesflicker during dimming process.
    Advantage

      Five channels with separate control

      Integrated with 90mA/500V MOSFET for each channel

      Independent maximum output current setting for each channel

      1024 gray-scale level output currentadjustment for each channel

      12C controlled for smart dimming

      Ultralow quiescent current with 100uAin sleep mode

      士4% LED output current

      Thermal regulation function

      Available in ESOP-8 package

    Application area
    • Smart LED bulbs
    • Smart filament LED bulbs
    • Other smart LED lamps

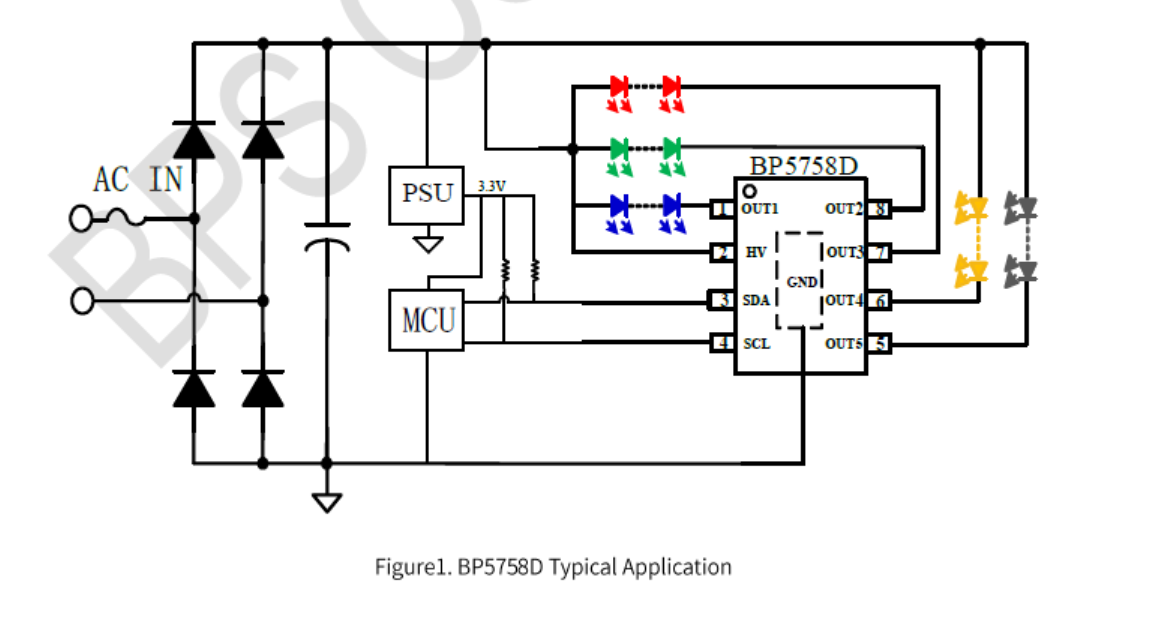

    Schematic diagram

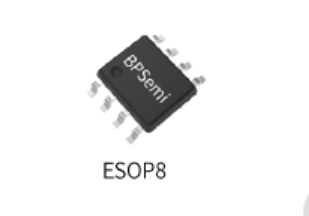

    Package
    Technical documents
    Document type Title Type Download
    Specification sheet BP5758D pdf Easy version Full version
